Monday, April 20, 2009

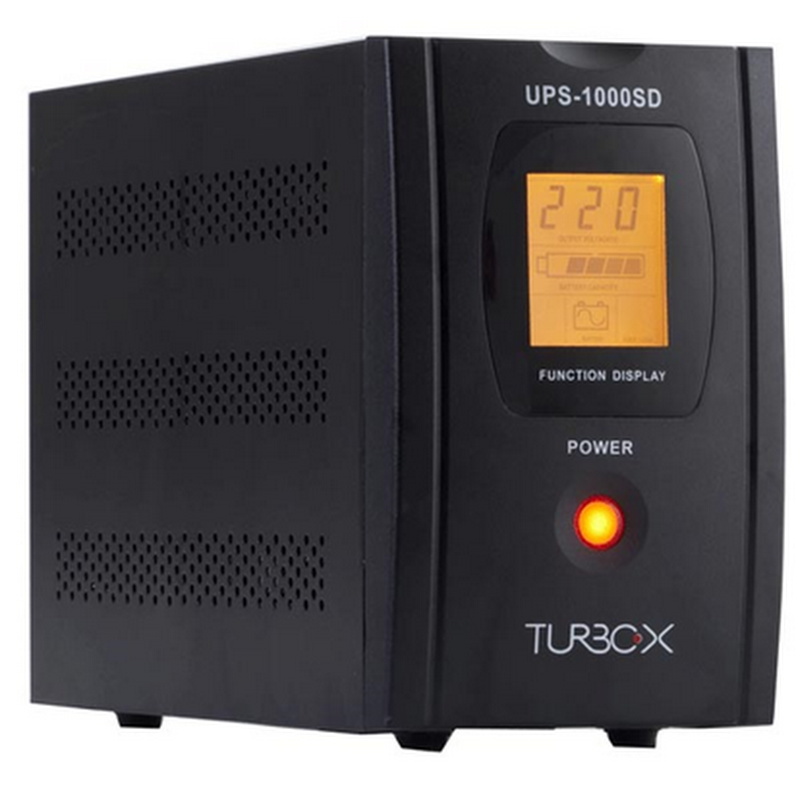

HOWTO: Connect a Tubo-X Plaisio, UPS 1000-SD with Upsilon 2000 on Windows Vista



I recently bought this UPS (Uninterruptable Power Supply) to protect my main workstation from power outages. However the way to set this up was not very apparent. I wanted to connect the USB cable so that when the power fails, the computer would shut itself off…

First of all when I pluged in the USB port, Vista (this was the same in XP too) auto detected a

Human Interface Device (HID) device, which was strange, since this is usually for MICE AND KEYBOARDS. So originally I thought there was some mistake in the drivers.. but this was NOT the case.. after googling a bit I found out that all UPS devices (usb) are detected as HID devices!


I then installed the software but it kept saying that the UPS was not detected. The final solution was simple.. but i stumbled upon it later. I had to select MEGA USB from the drop down selection as seen in the following screenshot:



UPS

Thats it, comments are welcome:
